Synerji Flush-Mount DB Board – DIN Rail, IP40, 6 to 36 Way
Synerji Flush-Mount DB Board – DIN Rail, IP40, 6 to 36 Way
SKU:SYDB6WFLUDIN
64 in stock
Make your first payment today, then monthly over 2–6 months.
Delivery
- Delivery time
- 3–5 business days
- Delivers to
- Anywhere in South Africa
- Delivery cost
- Free over R2,000 · R200 under R2,000
Couldn't load pickup availability
- ✓ 1-year warranty against manufacturing defects
- ✓ Collection in Bedfordview by appointment

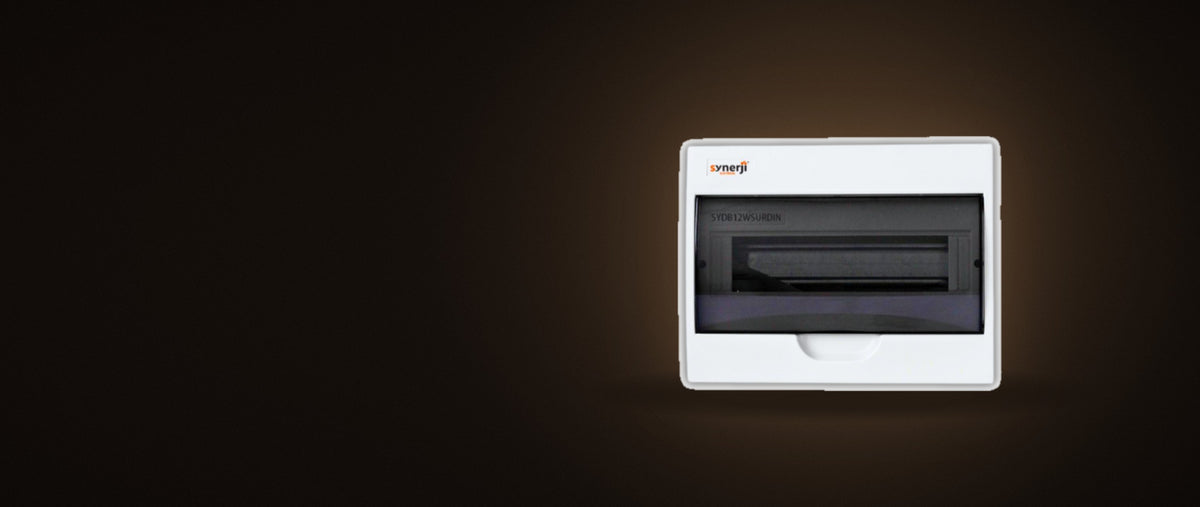

A Synerji flush-mount DIN rail distribution board that sits into the wall for a neat finish in homes, offices and industrial sites. It has an ABS box shell, PC door, copper zero and earth bars, a 125A rating and IP40 protection, and is built to IEC 60439-3.
It comes in eight sizes from 6 to 36 way; count the breakers you need now and allow spare ways for future circuits. A flush board needs a wall recess, so where that is not practical, the Synerji Surface-Mount DB Board – 35mm DIN Rail, 4 to 36 Way mounts on the wall surface.
Features
- Flush mounting for a neat, recessed finish
- ABS box shell with PC door
- Copper zero and earth bars included
- Rated 125A, IP40 and IK08, built to IEC 60439-3
- Eight sizes from 6 to 36 way
- 3-year warranty
Specifications
| Type | Flush-mount DIN rail distribution board (PVC/ABS) |
|---|---|
| Size / ways | 6, 8, 10, 12, 15, 18, 24 or 36 way (per variant) |
| Rating | 125A rated current; 400V AC / 1000V DC rated voltage |
| IP rating | IP40 (IK08) |
| Material | ABS box shell, PC door, copper zero (neutral) and earth bars |
| Use | Indoor residential, commercial and industrial installations |
| Included | Earth and neutral bars |
| Standard | IEC 60439-3; CE, RoHS, HF test, IK test, ISO 9001 |
| Fire resistance | 650°C / 30s |
| Operating temperature | -5°C to +40°C (50% humidity permitted at max +40°C); storage -40°C to +75°C |
| Colour | White body, smoky lid |
| Warranty | 3 years |
By option
6 Way
| Dimensions | 220 (H) × 170 (W) × 85 (D) mm; 75mm in-wall depth |
|---|
8 Way
| Dimensions | 220 × 210 × 85mm; 55mm in-wall depth |
|---|
10 Way
| Dimensions | 220 × 250 × 85mm; 55mm in-wall depth |
|---|
12 Way
| Dimensions | 220 × 280 × 85mm; 55mm in-wall depth |
|---|
15 Way
| Dimensions | 220 × 340 × 85mm; 55mm in-wall depth |
|---|
18 Way
| Dimensions | 220 × 400 × 85mm; 55mm in-wall depth |
|---|
24 Way
| Dimensions | 345 × 300 × 95mm; 65mm in-wall depth |
|---|
36 Way
| Dimensions | 480 × 300 × 95mm; 75mm in-wall depth |
|---|
Product codes
6 Way: SYDB6WFLUDIN · 8 Way: SYDB8WFLUDIN · 10 Way: SYDB10WFLUDIN · 12 Way: SYDB12WFLUDIN · 15 Way: SYDB15WFLUDIN · 18 Way: SYDB18WFLUDIN · 24 Way: SYDB24WFLUDIN · 36 Way: SYDB36WFLUDIN
Good to know
Which size do I need?
Count your breakers and add spare ways; sizes run 6 to 36 way.
How big a recess must I cut?
Check the variant: e.g. the 12-way is 220 × 280mm with about 55mm of its 85mm depth in the wall.
Can it go outside?
No – it is IP40 for indoor use. Use an IP65 waterproof board outdoors.
Does it need an electrician?
Yes – distribution boards must be installed and certified by a qualified electrician.
Browse more electrical products and see the full Synerji range. Installation by a qualified electrician.
