Synerji B-Press DC LED Dimmer – 96W, 9–48VDC
Synerji B-Press DC LED Dimmer – 96W, 9–48VDC
SKU:STSYDIM96
51 in stock
Make your first payment today, then monthly over 2–6 months.
Delivery
- Delivery time
- 3–5 business days
- Delivers to
- Anywhere in South Africa
- Delivery cost
- Free over R2,000 · R200 under R2,000
Couldn't load pickup availability
- ✓ 1-year warranty against manufacturing defects
- ✓ Collection in Bedfordview by appointment

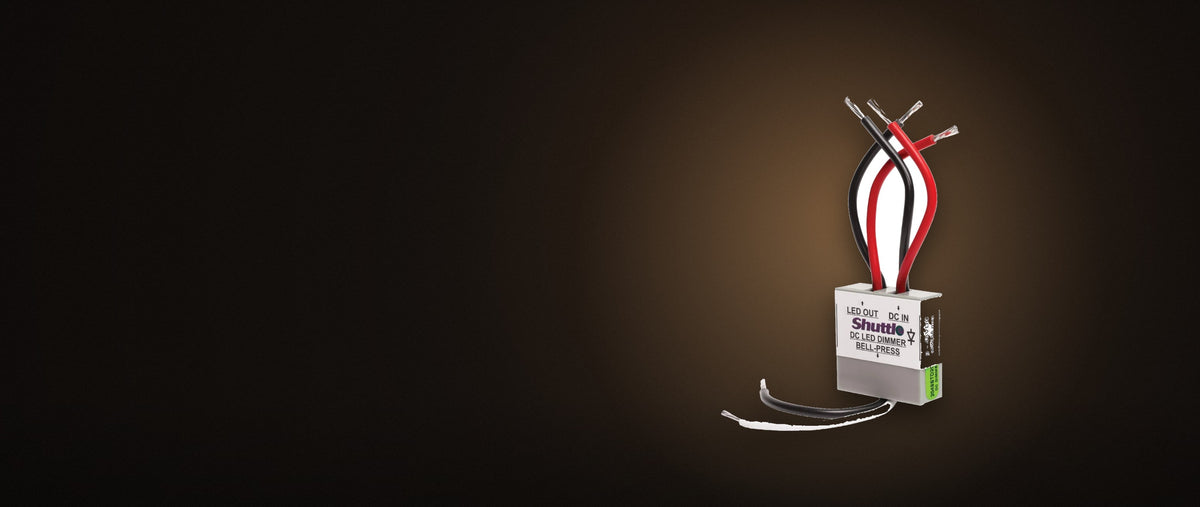

The Synerji B-Press is a compact 96W bell-press (push-button) dimmer module for LED strip lights and other constant-voltage DC lighting. It works across a 9VDC to 48VDC input range, so one model covers a wide spread of low-voltage strip systems, with smooth 10-bit digital dimming from 0.7% to 99.9%.
It suits under-cabinet lights, retail displays, signage and custom lighting setups. Check that your strip power supply falls within 9–48VDC and keep the load within the rating: 8A at 12V, 4A at 24V or 2A at 48V, up to 96W. It is not for inductive loads such as motors. For dimming on 230V mains circuits, see the Synerji Bikkel LED Dimmer – 200W, Trailing Edge, 230V.
Features
- Push-button (bell-press) dimming
- Up to 96W – 8A at 12V, 4A at 24V, 2A at 48V
- 9VDC–48VDC input range
- Smooth 10-bit dimming from 0.7% to 99.9%
- For constant-voltage LED strip and modules
- No minimum load
Specifications
| Range | Synerji LED Shuttle DC dimmers |
|---|---|
| Configuration | DC bell-press (push-button) dimmer module; controlled from a momentary bell-press switch |
| Rating (A) | Max load current 8A @ 12V DC · 4A @ 24V DC · 2A @ 48V DC |
| Voltage | 9–48V DC (minimum operating voltage 9V DC) |
| Dimmer type & load range | Digital (10-bit) dimming, 0.7%–99.9%; no minimum load, maximum 96W; optimised for constant-voltage LED lamps and modules, compatible with resistive loads, not for inductive loads (motors) |
| Fits / compatible with | All constant-voltage LED drivers/power supplies; most constant-current drivers (test before commissioning) |
| Warranty | 2 years |
| Dimensions | 36 × 36 × 12mm (plastic enclosure) |
| Mounting | Installed in the wall box behind a normally-open bell-press switch; one dimmer per wall box; indoor use only |
Product code: STSYDIM96
Good to know
Will it work with my 12V or 24V strip light?
Yes – it runs on 9–48V DC. Max load is 96W: 8A at 12V, 4A at 24V or 2A at 48V.
How is it controlled?
With a push-button (bell-press) switch; control wiring resistance must stay under 50kΩ. It remembers the last level (memory function).
Can I use it on 230V mains lights?
No. It is a low-voltage DC dimmer that sits between the LED power supply and the strip. For 230V circuits use a mains dimmer.
Does it need an electrician?
Yes – installation by a qualified electrician.
