Synerji Strip Connectors – 12-Way Pack, 6A/15A/30A
Synerji Strip Connectors – 12-Way Pack, 6A/15A/30A
SKU:CONEKL1
4750 in stock
Delivery
- Delivery time
- 3–5 business days
- Delivers to
- Anywhere in South Africa
- Delivery cost
- Free over R2,000 · R200 under R2,000
Couldn't load pickup availability
- ✓ 1-year warranty against manufacturing defects
- ✓ Collection in Bedfordview by appointment

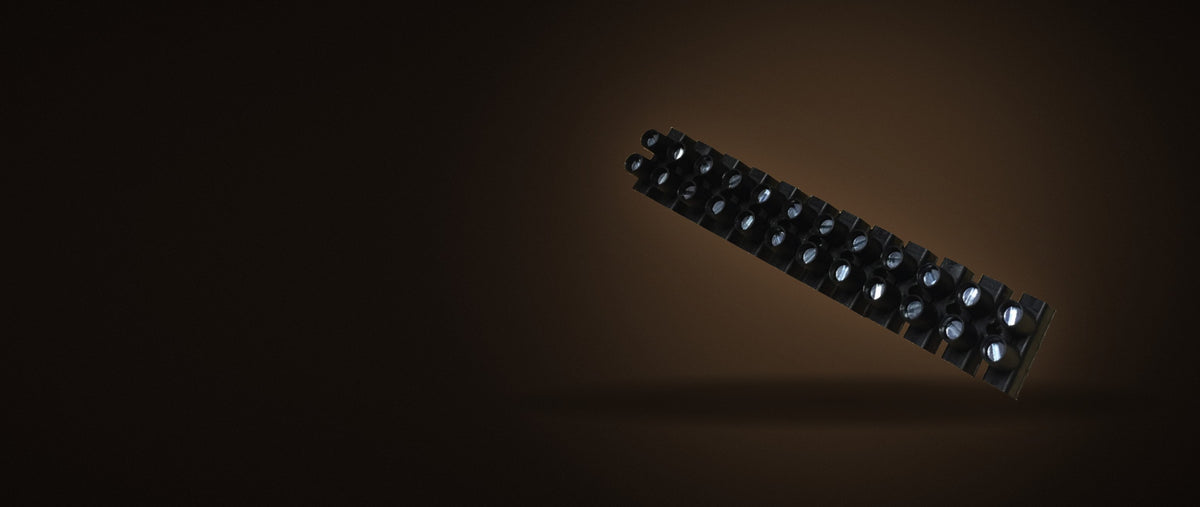

Synerji strip connectors are 12-way screw-terminal blocks for joining and terminating electrical wires, with a flame-retardant black PVC housing and nickel-plated brass contacts. Each strip has 12 ways and is free-hanging, for neat, secure joins inside enclosures and fittings.
They come in three current ratings: 6A for 1.5–6mm² wire, 15A for 2.5–10mm² and 30A for 4–16mm². The 20mm option is the 6A strip, the 25mm option the 15A strip and the 32mm option the 30A strip. They are rated for 250V AC and -20°C to +85°C.
Features
- 12-way screw-terminal strip
- 6A, 15A or 30A ratings
- Flame-retardant PVC housing
- Nickel-plated brass contacts
- Rated 250V AC, -20°C to +85°C
Specifications
| Type | 12-way screw-terminal strip connector (terminal block) |
|---|---|
| Size / ways | 12 ways |
| Rating | 6A (CONEKL1) / 15A (CONEKL2) / 30A (CONEKL3) |
| Voltage | 250V AC rating (connector marking: 450V, T80) |
| Wire size | 6A: 1.5–6mm²; 15A: 2.5–10mm²; 30A: 4.0–16mm² |
| Terminal torque | 6A: 0.5Nm; 15A: 0.8Nm; 30A: 1.2Nm |
| Material | Flame-retardant PVC housing; nickel-plated brass contacts |
| Colour | Black |
| Temperature range | -20°C to +85°C |
| Mounting | Free-hanging |
| Pack quantity | 1 strip of 12 ways |
| Use | Joining and terminating electrical wires |
| Standard | CE, RoHS |
| Warranty | 1 year against manufacturing defects (Lights Online warranty) |
By option
| 20mm | 25mm | 32mm | |
|---|---|---|---|
| Rating | 6A | 15A | 30A |
| Wire size | 1.5–6mm² | 2.5–10mm² | 4.0–16mm² |
| Torque | 0.5Nm | 0.8Nm | 1.2Nm |
Product codes
6A: CONEKL1 · 15A: CONEKL2 · 30A: CONEKL3
Good to know
Are these for conduit?
No. They are 12-way screw-terminal strips for joining wires, rated by current (6A, 15A or 30A).
Which one should I buy?
Match the rating and wire size: 6A for 1.5–6mm², 15A for 2.5–10mm², 30A for 4.0–16mm².
How many connections are in a strip?
Each strip has 12 ways (12 screw-terminal positions).
Does it need an electrician?
Yes. It must be installed by a qualified electrician.
See more electrical supplies and the Synerji range. Electrical connections should be made by a qualified electrician.
