Synerji

Synerji L & T Connector for 8mm COB LED Strip – 2-Pin, 3.5A, 0–36V

SKU:SYSTRCONL01

107 in stock

R 24.30

Sale Sold out

Shipping calculated at checkout.

Quantity

Delivery

Delivery time: 3–5 business days
Delivers to: Anywhere in South Africa
Delivery cost: Free over R2,000 · R200 under R2,000

Ask about this product on WhatsApp 081 696 3851

✓ 1-year warranty against manufacturing defects
✓ Collection in Bedfordview by appointment

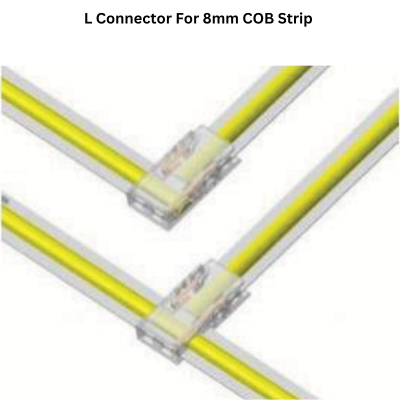

The Synerji L connector joins 8mm-wide, 2-pin COB LED strip at a 90° corner without soldering. It is rated 0–36V and up to 3.5A, so it is for low-voltage strip in dry indoor areas, not mains-voltage strip.

Before ordering, check that your strip is 8mm wide, 2-pin and has a PCB thickness of 0.25–0.35mm. The transparent polycarbonate body has copper contacts and is made from fire-retardant material. To join two straight lengths, see the Synerji strip-to-strip connector for 8mm COB strip.

Features

Turns neat 90° corners in COB strip runs
Clip-on, solder-free connection
For 8mm, 2-pin COB strip
Rated 0–36V, maximum 3.5A
Copper contacts in a transparent, fire-retardant body
IP20, for dry indoor areas

Specifications

Type	L-connector (90° corner), solder-free, for 8mm 2-pin COB strip
Size / ways	8mm strip width, 2-pin; strip PCB thickness 0.25–0.35mm
Rating	Max 3.5A; 0–36V (rated voltage III/2)
IP rating	IP20
Material	Polycarbonate housing, transparent; copper contacts; fire-retardant grade UL-94-V2; max temperature resistance 80°C; operating temperature -10°C to 40°C
Use	Turning 90° corners in 8mm COB strip runs without soldering
Fits / compatible with	Synerji 24V IP20 COB strip SYSTRCOB01 / SYSTRCOB02 / SYSTRCOB03
Warranty	1 year against manufacturing defects (Lights Online warranty)

Product code: SYSTRCONL01

Good to know

Which strip does it fit?

8mm-wide, 2-pin COB strip with a 0.25–0.35mm PCB – Synerji lists SYSTRCOB01/02/03 (24V IP20 COB).

Can I use it on 220V strip?

No. It is rated 0–36V and max 3.5A – low-voltage DC strip only.

Is it waterproof?

No – it is an IP20 connector for dry indoor use.

Does it need an electrician?

The strip-light accessories must be installed by a qualified electrician; the strip itself is fed from a mains-powered driver or power cord.

See more strip light accessories, browse LED strip lights or the full Synerji range.
