Synerji Flush-Mount DIN Rail DB Board – 8/12/15/18/24 Way
Synerji Flush-Mount DIN Rail DB Board – 8/12/15/18/24 Way
SKU:SYDBM15WFLUDIN
Low stock: 5 left
Make your first payment today, then monthly over 2–6 months.
Delivery
- Delivery time
- 3–5 business days
- Delivers to
- Anywhere in South Africa
- Delivery cost
- Free over R2,000 · R200 under R2,000
Couldn't load pickup availability
- ✓ 1-year warranty against manufacturing defects
- ✓ Collection in Bedfordview by appointment

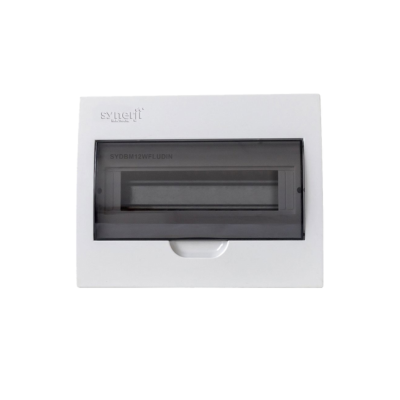

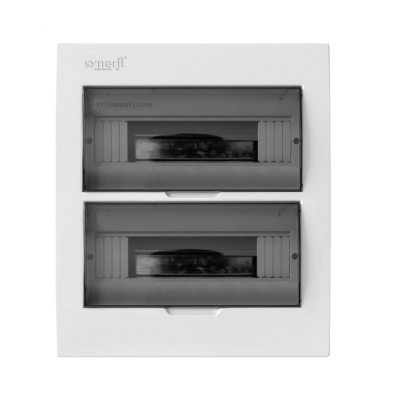

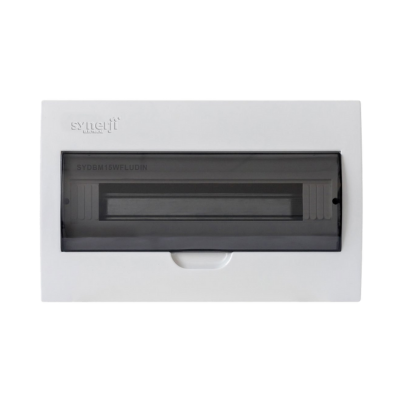

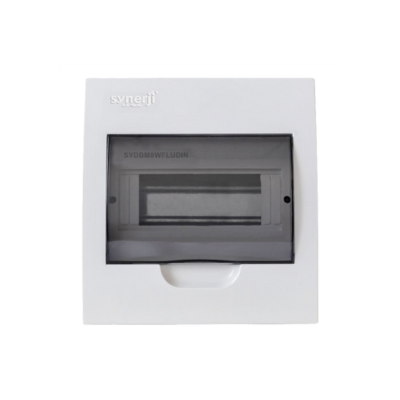

A Synerji flush-mount DIN rail distribution board with a metal base, for indoor residential, commercial and industrial installations. Flush mounting sets the board into the wall for a neat finish, and the ABS shell, PC door and copper earth and neutral bars are built to IEC 60439-3, rated 125A and IP40.
It comes in five sizes from 8 to 24 way, each with an 80mm in-wall depth. Choose the size by counting the breakers on the installation and leaving a few spare ways for future circuits. If you need a flush board in a 6 or 36 way size, compare the Synerji Flush-Mount DB Board – DIN Rail, IP40, 6 to 36 Way.
Features
- Flush mounting for a neat, recessed finish
- Metal base with ABS shell and PC door
- Copper earth and neutral bars included
- Rated 125A, IP40 and IK08, built to IEC 60439-3
- Five sizes from 8 to 24 way
- 3-year warranty
Specifications
| Type | Flush-mount DIN rail distribution board, metal base |
|---|---|
| Size / ways | 8, 12, 15, 18 or 24 way (per variant) |
| Rating | 125A rated current; 400V AC / 1000V DC rated voltage |
| IP rating | IP40 (IK08) |
| Material | ABS box shell with metal base; PC door; copper zero (neutral) and earth bars |
| Use | Indoor residential, commercial and industrial installations |
| Included | Earth and neutral bars (copper terminal block) |
| Standard | IEC 60439-3; CE, RoHS, HF test, IK test, ISO 9001 |
| Fire resistance | 650°C / 30s |
| Operating temperature | -5°C to +40°C (50% humidity permitted at max +40°C); storage -40°C to +75°C |
| Colour | White body, smoky lid |
| Warranty | 3 years |
By option
| 8 Way | 12 Way | 15 Way | 18 Way | 24 Way | |
|---|---|---|---|---|---|
| Dimensions | 220 (H) × 210 (W) × 105 (D) mm; 80mm in-wall depth | 220 × 280 × 105mm; 80mm in-wall depth | 220 × 340 × 105mm; 80mm in-wall depth | 250 × 400 × 105mm; 80mm in-wall depth | 345 × 300 × 105mm; 80mm in-wall depth |
Product codes
8 Way: SYDBM8WFLUDIN · 12 Way: SYDBM12WFLUDIN · 15 Way: SYDBM15WFLUDIN · 18 Way: SYDBM18WFLUDIN · 24 Way: SYDBM24WFLUDIN
Good to know
Which size do I need?
Count the single-module breakers (MCBs/RCDs) you need and add a few spare ways; sizes run 8 to 24 way.
How much wall recess is needed?
the 8-way box is 220 × 210mm.
Can it go outside?
No – it is IP40, for indoor positions. Use an IP65 waterproof board outdoors.
Does it need an electrician?
Yes – distribution boards must be installed and certified by a qualified electrician.
Browse more electrical products and see the full Synerji range. Installation by a qualified electrician.
