Synerji 4-Pole Isolator Switch – IP66, 20A/35A/63A, 440V
Synerji 4-Pole Isolator Switch – IP66, 20A/35A/63A, 440V
SKU:SYEIS4P20A
45 in stock
Make your first payment today, then monthly over 2–6 months.
Delivery
- Delivery time
- 3–5 business days
- Delivers to
- Anywhere in South Africa
- Delivery cost
- Free over R2,000 · R200 under R2,000
Couldn't load pickup availability
- ✓ 1-year warranty against manufacturing defects
- ✓ Collection in Bedfordview by appointment

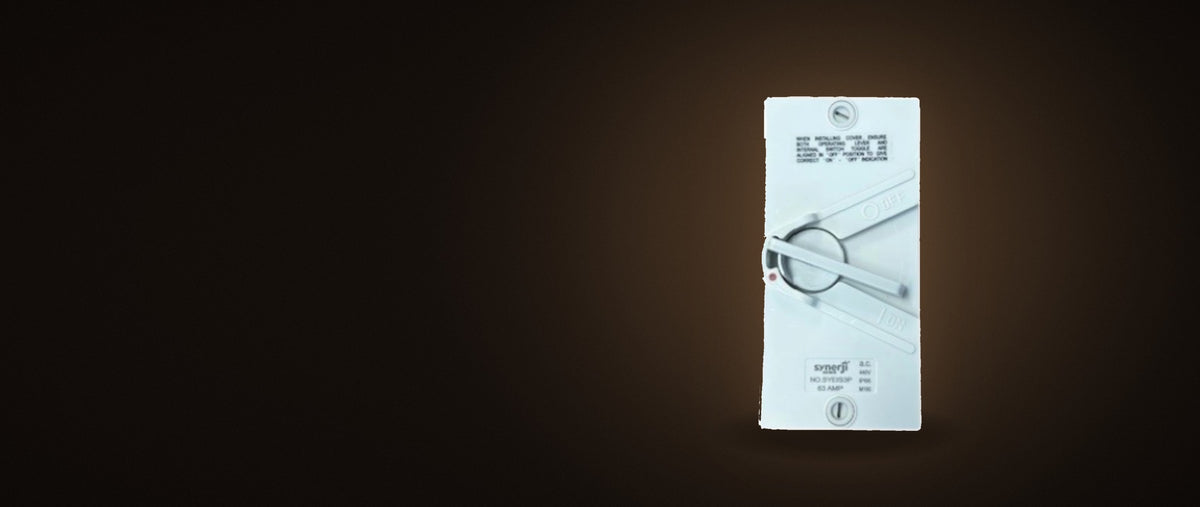

The Synerji 4-pole rotary isolator switch gives full isolation for three-phase and single-phase installations, with a lockable OFF position for safe maintenance. It is rated IP66 and AC 440V, and comes in 20A, 35A and 63A.
The four poles allow three-phase plus neutral isolation. Its impact-resistant IP66 enclosure suits industrial machinery, pump stations, agricultural installations and outdoor plant rooms, and cables can enter from above, below or straight through. Choose the current rating to match the circuit and load. For three-pole isolation, see the Synerji 3-Pole Isolator Switch.
Features
- 4-pole design for three-phase plus neutral isolation
- IP66 rated, impact-resistant enclosure
- Lockable OFF position for safe maintenance
- 20A, 35A or 63A ratings
- Flexible cable entry, including rear knockouts
Specifications
| Type | Surface-mount weatherproof rotary isolator switch |
|---|---|
| Configuration | 4-pole; lockable OFF position |
| Rating (A) | 20A, 35A or 63A |
| Voltage | AC 440V rated |
| IP rating | IP66 |
| Finish / colour options | Grey |
| Material | Impact-resistant enclosure |
| Fits / compatible with | Cable entry in/out from overhead, from underground or straight through; two 25mm rear knockouts for concealed wiring |
| Dimensions | 162 x 102mm (base 85mm wide; fixing centres 67mm x 94/115mm) |
| Warranty | 2 years |
By option
| 20A | 35A | 63A | |
|---|---|---|---|
| Rating (A) | 20A | 35A | 63A |
Product codes
20A: SYEIS4P20A · 35A: SYEIS4P35A · 63A: SYEIS4P63A
Good to know
Can it be mounted outside?
Yes. It is IP66, dust-tight and protected against powerful water jets.
Can it be locked off?
Yes, it has a lockable OFF position to prevent accidental re-energising.
How is the cable brought in?
From above, from below or straight through, or concealed through the two 25mm rear knockouts.
Does it need an electrician?
Yes. It must be installed by a qualified electrician.
See more isolator switches and the full Synerji range. Installation by a qualified electrician.
