Synerji

Synerji 24V LED Strip Driver – IP20, 60W/100W/150W/200W/300W

SKU:SYSTRDR01

52 in stock

R 161.29

Sale Sold out

Shipping calculated at checkout.

Size 60W 100W 150W 200W 300W

Quantity

Delivery

Delivery time: 3–5 business days
Delivers to: Anywhere in South Africa
Delivery cost: Free over R2,000 · R200 under R2,000

Ask about this product on WhatsApp 081 696 3851

✓ 1-year warranty against manufacturing defects
✓ Collection in Bedfordview by appointment

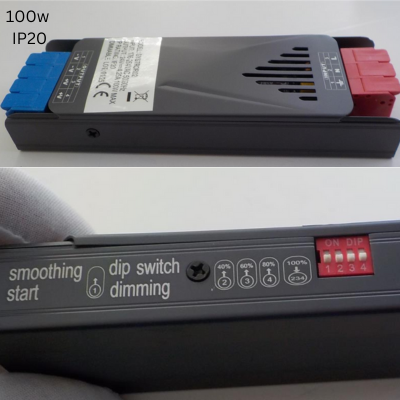

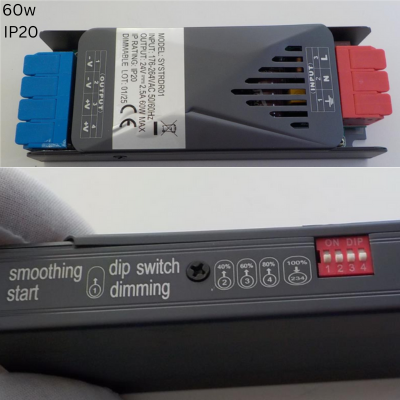

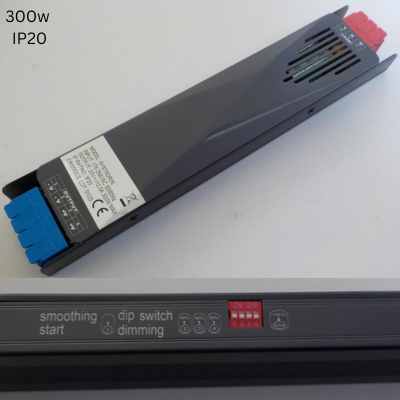

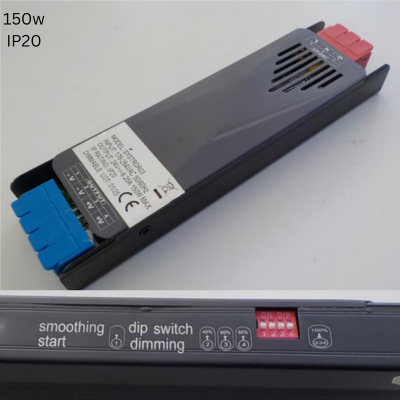

The Synerji 24V LED strip driver converts mains power to 24V DC to run 24V LED strip lights. Housed in aluminium and rated IP20 for dry indoor spaces such as ceiling voids and cupboards, it comes in five power ratings from 60W to 300W, with a DIP-switch dimming function and a soft start.

Choose a rating comfortably above the total wattage of the strip it will power – Synerji recommends loading each driver to about 80% of its rating, for example 48W on the 60W unit – and split a long installation across more than one driver if a single unit would be overloaded. Where the driver could be exposed to moisture, use the Synerji waterproof LED strip driver instead.

Features

Steady 24V DC output for 24V LED strip
Five sizes from 60W to 300W
Wide 176–264V AC input range
Open circuit, short circuit and over-temperature protection
Dimmer compatible, with DIP-switch dimming and soft start
Aluminium housing, IP20 for dry indoor areas

Specifications

Type	Constant-voltage LED strip driver with DIP-switch dimming (soft start), dimmer compatible
Rating	24V DC output; 60W–300W (see variants)
Input voltage	176–264V AC
Efficiency	≥80% at rated load (220V AC input)
Protection	Open circuit, short circuit and over-temperature (IC above 130°C)
IP rating	IP20
Material	Pure aluminium housing
Operating conditions	−20°C to +45°C, 10–85% RH
Use	Powering 24V LED strip lights indoors; Synerji lists it as compatible with its COB and flex strips
Warranty	2 years

By option

	60W	100W	150W	200W	300W
Output	24V DC, 2.5A	24V DC, 4.2A	24V DC, 6.25A	24V DC, 8.3A	24V DC, 12.5A
Recommended load (Synerji 'actual power')	48W	80W	120W	—	—
Dimensions	127 × 47 × 24mm	144 × 47 × 24mm	180 × 47 × 24mm	207 × 47 × 24mm	240 × 47 × 24mm

Product codes

60W: SYSTRDR01 · 100W: SYSTRDR02 · 150W: SYSTRDR03 · 200W: SYSTRDR04 · 300W: SYSTRDR05

Good to know

Which size do I need?

Add up the strip wattage (W/m × metres) and leave headroom. Synerji lists the usable load of the 60W, 100W and 150W drivers as 48W, 80W and 120W.

Can I use it outdoors?

No. It is rated IP20 for dry indoor locations. For damp or outdoor locations, use the IP67 waterproof drivers.

Can the strip be dimmed?

Synerji lists DIP-switch dimming and dimmer compatibility.

Does it need an electrician?

Yes. It must be installed by a qualified electrician.

Pair it with our 24V LED strip lights, compare all 24V strip light drivers or see the full Synerji range. Installation by a qualified electrician.
