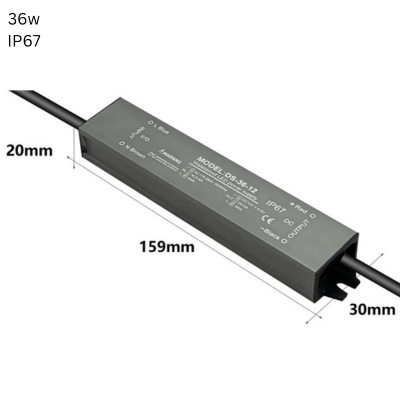

Synerji 24V Waterproof LED Strip Driver – IP67, 36W/60W/100W/200W

The Synerji 24V waterproof LED strip driver is IP67 rated, for strip light installations where the driver may be exposed to moisture, such as patios, signage and damp locations. It supplies 24V DC and comes in four power ratings from 36W to 200W.

Pick a rating that exceeds the total wattage of the strip on that circuit. It operates from –30°C to 45°C and at up to 100% relative humidity. For dry indoor spaces, or loads up to 300W, the alternative is the Synerji 24V LED Strip Driver – IP20, 60W/100W/150W/200W/300W.

Features

• IP67 waterproof
• 24V DC output
• 198–242V input, 50–60Hz
• Typical efficiency ≥83%
• Open circuit and short circuit protection
• 20ms hold-up time at 230V AC

Specifications

• 36W: SYSTRDR06
• 60W: SYSTRDR07
• 100W: SYSTRDR08
• 200W: SYSTRDR09
• Output voltage: 24V DC
• Input voltage: 198–242V
• Frequency: 50–60Hz
• Efficiency (typical): ≥83%
• Ripple & noise: 240mVp-p
• Hold-up time: 20ms at 230V AC
• Operating conditions: –30°C to 45°C, 0–100% relative humidity
• Protection: Open circuit, short circuit
• IP rating: IP67

Pair it with our 24V LED strip lights, compare all 24V strip light drivers or see the full Synerji range. Installation by a qualified electrician.
